  • LMT FETTE 1401458 M6-1.00MM Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

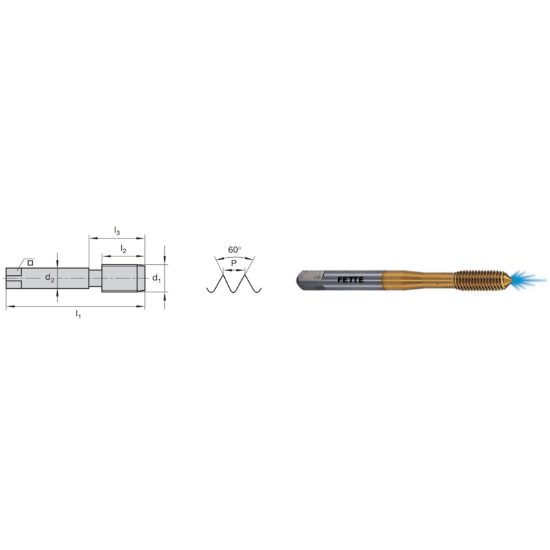

Picture of LMT FETTE 1401458 M6-1.00MM Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1401458 M6-1.00MM Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1401458
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Application Blind Hole Tapping, Mod Bottom Tapping, Roll Form Tapping, Tapping
Performance Rating High Performance
Package Size 1
Coating TiCN +
Made In USA No
Shipping State Illinois
Dimensional Specifications
Overall Len 3.1560 80.16MM
Tool Material Steel
Thread Size M6
Dimension Standard DIN/DIN
Thread Limit 6H
Shank/Pilot Dia 0.2360 5.99MM
Tap Chamfer 2.0P-3.0P
Cut Rating <40HRC Steel, Aluminum, High Temp, Stainless Steel
Drill Range 0.2161 5.49MM - 0.2217 5.63MM
Tap Style Roll Form
Thread Pitch 1.00MM
Machine Side Connection Type Tap Collet
Tap Square 0.1930
Tap Type Mod Bottom
Length Type Standard
Thread Type Metric
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Agricultural YES
Medical Yes
Energy Yes
Multi Spindle Yes
Automotive Yes
