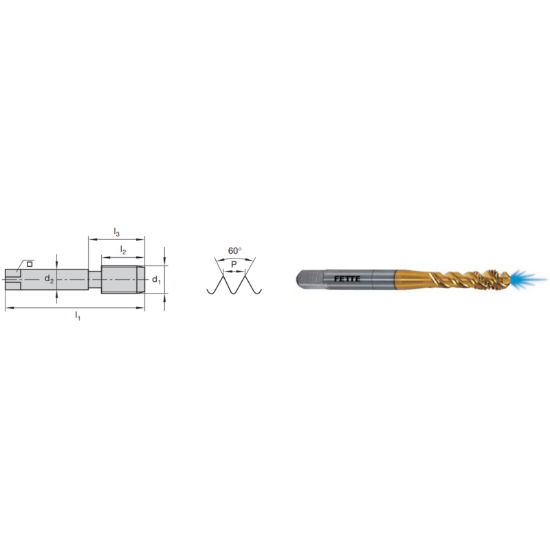

Picture of LMT FETTE 1401436 3/4-16.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1401436 3/4-16.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1401436
Delivery date: 3-5 days
$192.73

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiCN +
Package Size 1
Made In USA No
Shipping State Illinois
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Dimensional Specifications
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Square 0.4420
Tap Type Mod Bottom
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Limit 2B/3B
Flute Direction R - Right
Dimension Standard DINSI
Flutes/Inserts 4
Length Type Standard
Thread Pitch 16.00TPI
Tool Material Steel
Thread Size 3/4"
Thread Type NF/UNF/UNEF
Shank/Pilot Dia 0.5900 14.99MM
Overall Len 4.3310 110.01MM
Drill Range 0.6850 17.40MM - 0.7012 17.81MM
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru Yes
Industry-Specific Applications
Medical Yes
Agricultural YES
Energy Yes
Multi Spindle Yes
Automotive Yes
Job Shop Yes
Aerospace Yes
Mold Yes
