  • LMT FETTE 1401435 5/8-18.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

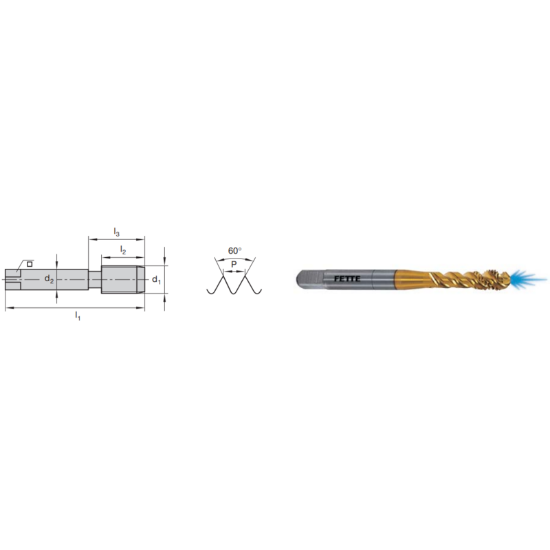

Picture of LMT FETTE 1401435 5/8-18.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1401435 5/8-18.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1401435
Delivery date: 3-5 days
$148.22

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Coating TiCN +
Package Size 1
Shipping State Illinois
Dimensional Specifications
Flute Direction R - Right
Dimension Standard DINSI
Flutes/Inserts 4
Length Type Standard
Thread Type NF/UNF/UNEF
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Drill Range 0.5669 14.40MM - 0.5815 14.77MM
Thread Pitch 18.00TPI
Thread Limit 2B/3B
Shank/Pilot Dia 0.4800 12.19MM
Tap Chamfer 2.0P-3.0P
Thread Size 5/8"
Tool Material Steel
Overall Len 3.9370 100.00MM
Tap Square 0.3600
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Multi Spindle Yes
Medical Yes
Energy Yes
Agricultural YES
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
