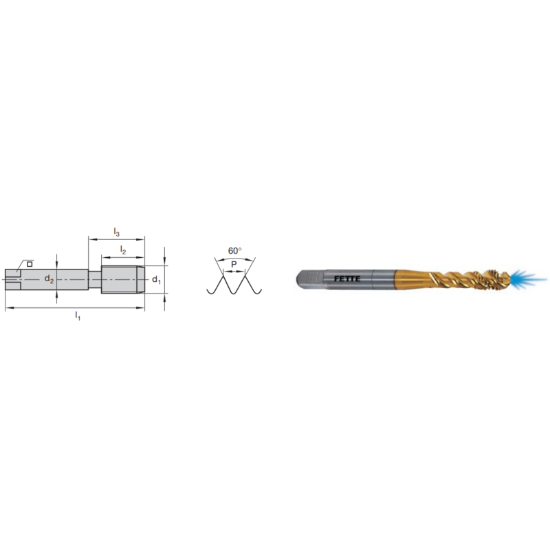

Picture of LMT FETTE 1401426 7/16-14.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1401426 7/16-14.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1401426
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Application Mod Bottom Tapping, Cut Tapping, Tapping
Coating TiCN +
Package Size 1
Made In USA No
Shipping State Illinois
Performance Rating High Performance
Dimensional Specifications
Thread Pitch 14.00TPI
Tool Material Steel
Flutes/Inserts 3
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.3230 8.20MM - P
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Type NC/UNC
Thread Limit 2B/3B
Dimension Standard DINSI
Tap Chamfer 2.0P-3.0P
Thread Size 7/16"
Flute Direction R - Right
Overall Len 3.9370 100.00MM
Drill Range 0.3630 9.22MM - 0.3815 9.69MM
Length Type Standard
Tap Square 0.2420
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
Multi Spindle Yes
