  • LMT FETTE 1401424 5/16-18.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

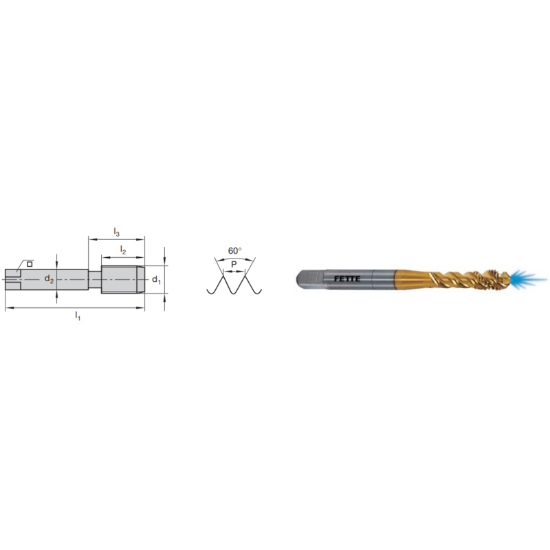

Picture of LMT FETTE 1401424 5/16-18.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1401424 5/16-18.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1401424
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Coating TiCN +
Package Size 1
Made In USA No
Dimensional Specifications
Thread Size 5/16"
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Overall Len 3.5430 89.99MM
Drill Range 0.2547 6.47MM - 0.2689 6.83MM
Flutes/Inserts 3
Thread Pitch 18.00TPI
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Tap Square 0.2380
Thread Type NC/UNC
Thread Limit 2B/3B
Flute Direction R - Right
Dimension Standard DINSI
Length Type Standard
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Automotive Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
Medical Yes
Multi Spindle Yes
