Picture of LMT FETTE 1401379 M10-1.25MM Cut Spiral Point Plug 2.0P-3.0P HSSE-Powder Metal TiCN +

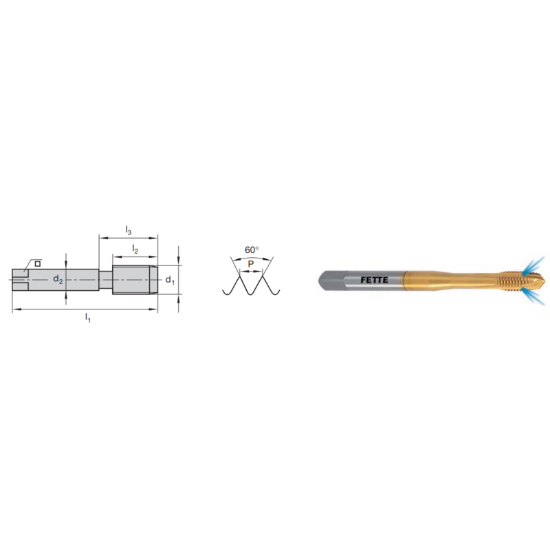

LMT FETTE 1401379 M10-1.25MM Cut Spiral Point Plug 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1401379
Delivery date: 3-5 days
$85.18

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Coating TiCN +
Package Size 1
Application Plug Tapping, Tapping, Cut Tapping, Through Hole Tapping
Performance Rating High Performance
Dimensional Specifications
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Flute Direction R - Right
Overall Len 3.9370 100.00MM
Length Type Standard
Tap Square 0.2170
Tap Chamfer 2.0P-3.0P
Thread Size M10
Dimension Standard DIN/DIN
Flutes/Inserts 3
Thread Type Metric
Drill Range 0.3425 8.70MM - 0.3555 9.03MM
Tap Type Plug
Thread Pitch 1.25MM
Tool Material Steel
Shank/Pilot Dia 0.2760 7.01MM
Thread Limit 6H
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Automotive Yes
Multi Spindle Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
