  • LMT FETTE 1401378 M10-1.00MM Cut Spiral Point Plug 2.0P-3.0P HSSE-Powder Metal TiCN +

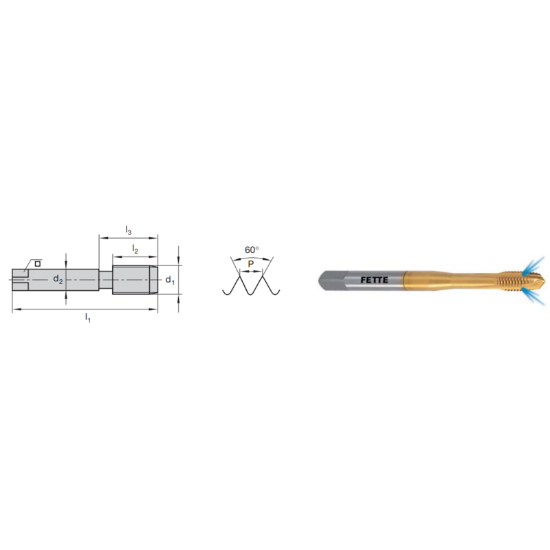

Picture of LMT FETTE 1401378 M10-1.00MM Cut Spiral Point Plug 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1401378 M10-1.00MM Cut Spiral Point Plug 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1401378
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Cut Tapping, Tapping, Through Hole Tapping, Plug Tapping
Performance Rating High Performance
Shipping State Illinois
Coating TiCN +
Package Size 1
Dimensional Specifications
Flute Direction R - Right
Tap Square 0.2170
Length Type Standard
Tap Type Plug
Thread Pitch 1.00MM
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Shank/Pilot Dia 0.2760 7.01MM
Dimension Standard DIN/DIN
Flutes/Inserts 3
Tool Material Steel
Overall Len 3.5430 89.99MM
Thread Size M10
Thread Type Metric
Thread Limit 6H
Drill Range 0.3528 8.96MM - 0.3630 9.22MM
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Multi Spindle Yes
Medical Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Automotive Yes
Agricultural YES
Energy Yes
