  • LMT FETTE 1401375 M8-1.25MM Cut Spiral Point Plug 2.0P-3.0P HSSE-Powder Metal TiCN +

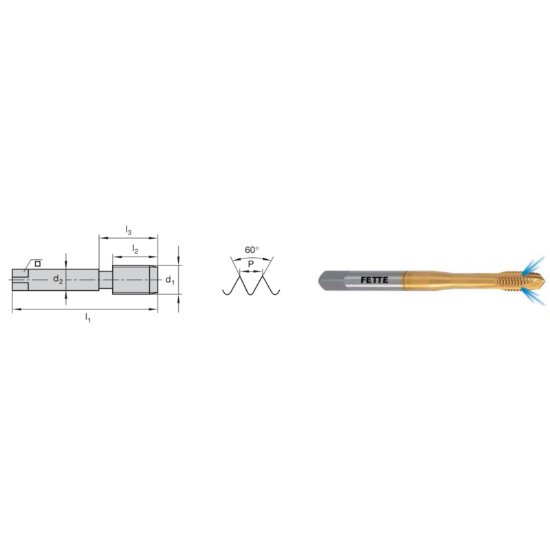

Picture of LMT FETTE 1401375 M8-1.25MM Cut Spiral Point Plug 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1401375 M8-1.25MM Cut Spiral Point Plug 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1401375
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Plug Tapping, Tapping, Cut Tapping
Made In USA No
Shipping State Illinois
Performance Rating High Performance
Coating TiCN +
Package Size 1
Dimensional Specifications
Thread Limit 6H
Thread Pitch 1.25MM
Tool Material Steel
Drill Range 0.2638 6.70MM - 0.2768 7.03MM
Tap Square 0.2440
Flute Direction R - Right
Overall Len 3.5430 89.99MM
Length Type Standard
Thread Size M8
Thread Type Metric
Shank/Pilot Dia 0.3150 8.00MM
Tap Type Plug
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Dimension Standard DIN/DIN
Flutes/Inserts 3
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru Yes
Industry-Specific Applications
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Automotive Yes
Multi Spindle Yes
