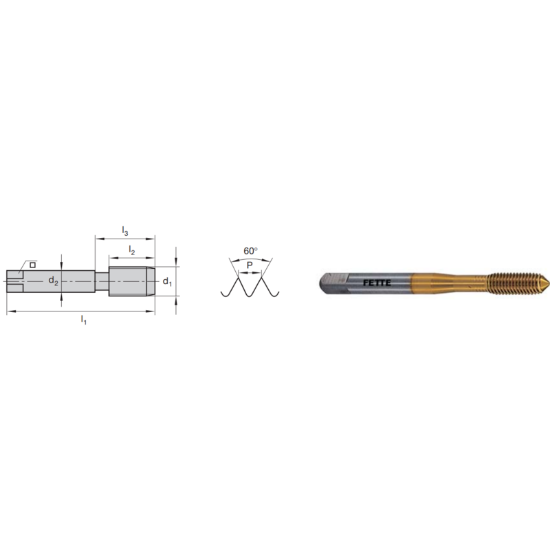

Picture of LMT FETTE 1401335 1/4-20.00TPI Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1401335 1/4-20.00TPI Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1401335
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Application Roll Form Tapping, Tapping, Blind Hole Tapping, Mod Bottom Tapping
Performance Rating High Performance
Coating TiCN +
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2550 6.48MM
Drill Range 0.2244 5.70MM - 0.2311 5.87MM
Thread Pitch 20.00TPI
Thread Type NC/UNC
Thread Limit 2B/3B
Dimension Standard DINSI
Cut Rating <40HRC Steel, Aluminum, High Temp, Stainless Steel
Overall Len 3.1490 79.98MM
Tap Style Roll Form
Tap Chamfer 2.0P-3.0P
Length Type Standard
Tap Square 0.1910
Tap Type Mod Bottom
Tool Material Steel
Thread Size 1/4"
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Automotive Yes
Multi Spindle Yes
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Job Shop Yes
