  • LMT FETTE 1401311 M11-1.00MM Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

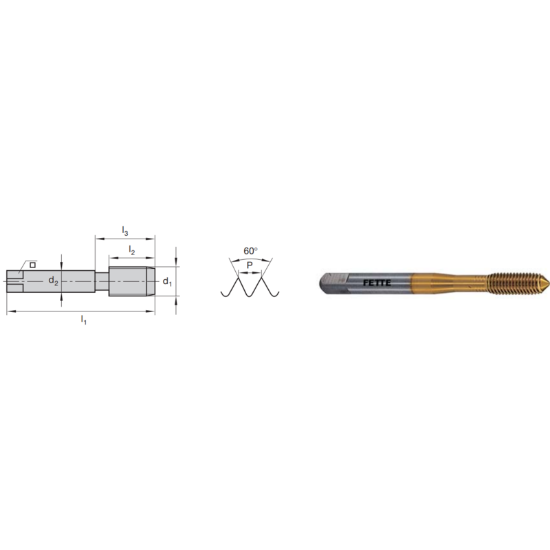

Picture of LMT FETTE 1401311 M11-1.00MM Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1401311 M11-1.00MM Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1401311
Delivery date: 3-5 days
$51.35

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Roll Form Tapping, Tapping, Blind Hole Tapping, Mod Bottom Tapping
Performance Rating High Performance
Coating TiCN +
Package Size 1
Dimensional Specifications
Cut Rating <40HRC Steel, Aluminum, High Temp, Stainless Steel
Length Type Standard
Thread Pitch 1.00MM
Machine Side Connection Type Tap Collet
Thread Size M11
Tap Type Mod Bottom
Dimension Standard DIN/DIN
Drill Range 0.4130 10.49MM - 0.4169 10.59MM
Tool Material Steel
Overall Len 3.5430 89.99MM
Tap Square 0.2440
Thread Type Metric
Shank/Pilot Dia 0.3150 8.00MM
Thread Limit 6H
Tap Style Roll Form
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Multi Spindle Yes
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
