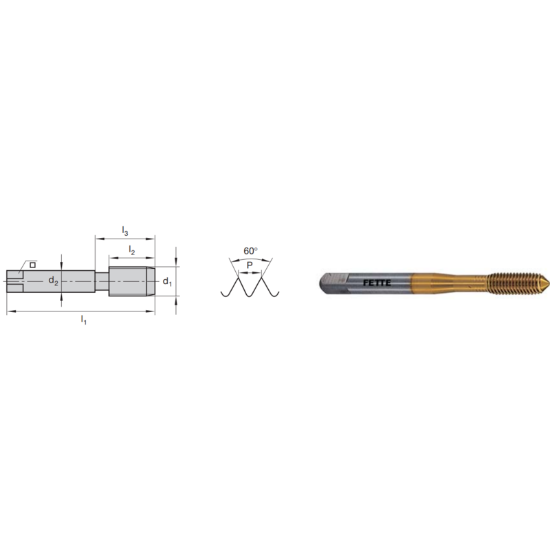

Picture of LMT FETTE 1401305 M9-1.00MM Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1401305 M9-1.00MM Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1401305
Delivery date: 3-5 days
$47.76

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiCN +
Package Size 1
Application Roll Form Tapping, Blind Hole Tapping, Mod Bottom Tapping, Tapping
Shipping State Illinois
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Thread Limit 6H
Tap Style Roll Form
Tap Chamfer 2.0P-3.0P
Dimension Standard DIN/DIN
Tool Material Steel
Shank/Pilot Dia 0.2760 7.01MM
Overall Len 3.5430 89.99MM
Thread Type Metric
Drill Range 0.3343 8.49MM - 0.3398 8.63MM
Thread Size M9
Thread Pitch 1.00MM
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Cut Rating <40HRC Steel, Aluminum, High Temp, Stainless Steel
Tap Square 0.2170
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Aerospace Yes
Automotive Yes
Job Shop Yes
Medical Yes
Energy Yes
Multi Spindle Yes
