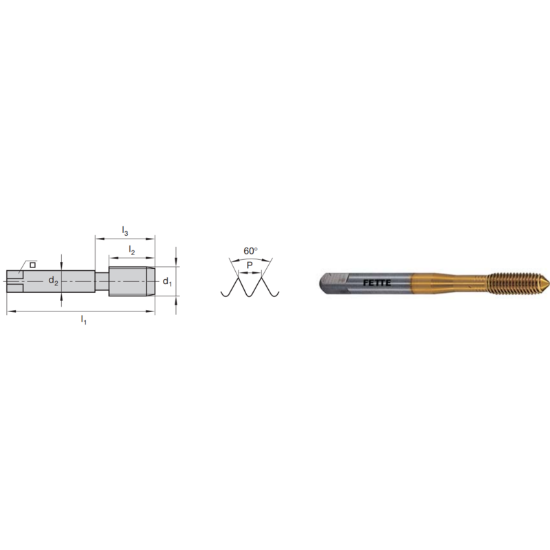

Picture of LMT FETTE 1401191 M20-2.50MM Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1401191 M20-2.50MM Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1401191
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Roll Form Tapping, Blind Hole Tapping, Mod Bottom Tapping
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Coating TiCN +
Package Size 1
Dimensional Specifications
Thread Type Metric
Dimension Standard DIN/DIN
Tool Material Steel
Thread Size M20
Machine Side Connection Type Tap Collet
Tap Square 0.4720
Drill Range 0.7372 18.72MM - 0.7506 19.07MM
Length Type Standard
Thread Limit 6H
Overall Len 5.5120 140.00MM
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Cut Rating <40HRC Steel, Aluminum, High Temp, Stainless Steel
Tap Style Roll Form
Thread Pitch 2.50MM
Shank/Pilot Dia 0.6300 16.00MM
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Automotive Yes
Multi Spindle Yes
Agricultural YES
Medical Yes
Energy Yes
