  • LMT FETTE 1401179 M8-1.25MM Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

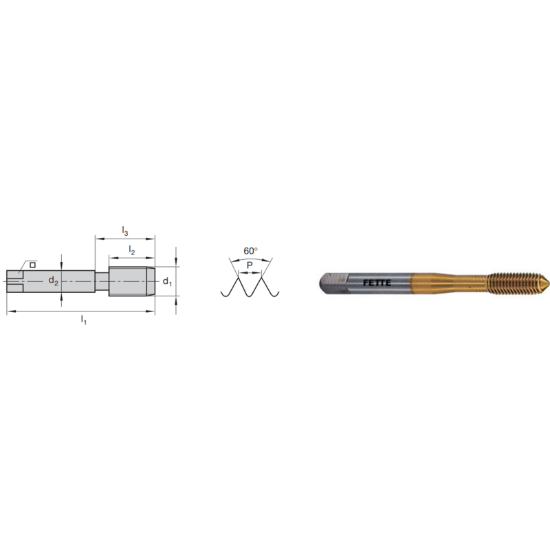

Picture of LMT FETTE 1401179 M8-1.25MM Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1401179 M8-1.25MM Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1401179
Delivery date: 3-5 days
$47.55

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Application Blind Hole Tapping, Tapping, Mod Bottom Tapping, Roll Form Tapping
Performance Rating High Performance
Coating TiCN +
Package Size 1
Made In USA No
Dimensional Specifications
Tool Material Steel
Overall Len 3.5430 89.99MM
Tap Square 0.2440
Thread Size M8
Thread Type Metric
Shank/Pilot Dia 0.3150 8.00MM
Thread Limit 6H
Tap Style Roll Form
Tap Chamfer 2.0P-3.0P
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Cut Rating <40HRC Steel, Aluminum, High Temp, Stainless Steel
Drill Range 0.2898 7.36MM - 0.2965 7.53MM
Length Type Standard
Thread Pitch 1.25MM
Dimension Standard DIN/DIN
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Agricultural YES
Energy Yes
Medical Yes
Multi Spindle Yes
