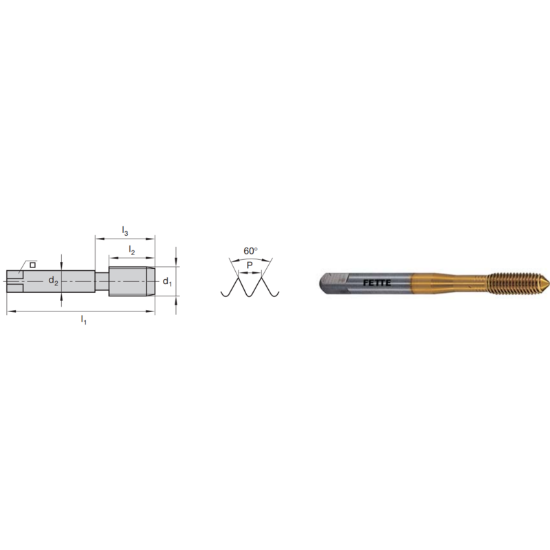

Picture of LMT FETTE 1401175 M5-0.80MM Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1401175 M5-0.80MM Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1401175
Delivery date: 3-5 days
$32.39

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Blind Hole Tapping, Mod Bottom Tapping, Roll Form Tapping
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Coating TiCN +
Package Size 1
Dimensional Specifications
Thread Size M5
Cut Rating <40HRC Steel, Aluminum, High Temp, Stainless Steel
Length Type Standard
Tool Material Steel
Drill Range 0.1807 4.59MM - 0.1850 4.70MM
Thread Pitch 0.80MM
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2360 5.99MM
Tap Square 0.1930
Tap Type Mod Bottom
Thread Type Metric
Overall Len 2.7560 70.00MM
Thread Limit 6H
Tap Style Roll Form
Tap Chamfer 2.0P-3.0P
Dimension Standard DIN/DIN
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Multi Spindle Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Agricultural YES
Medical Yes
Energy Yes
