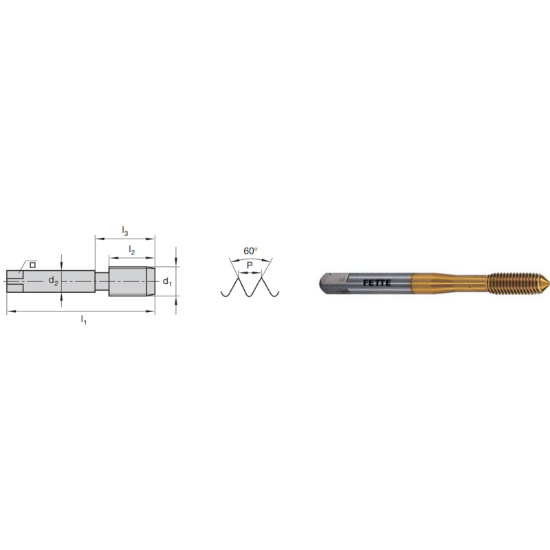

Picture of LMT FETTE 1401173 M4-0.70MM Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1401173 M4-0.70MM Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1401173
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Application Blind Hole Tapping, Mod Bottom Tapping, Tapping, Roll Form Tapping
Coating TiCN +
Package Size 1
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Thread Size M4
Machine Side Connection Type Tap Collet
Drill Range 0.1433 3.64MM - 0.1472 3.74MM
Thread Type Metric
Overall Len 2.4800 62.99MM
Thread Pitch 0.70MM
Tap Square 0.1340
Cut Rating <40HRC Steel, Aluminum, High Temp, Stainless Steel
Shank/Pilot Dia 0.1770 4.50MM - #16
Tap Style Roll Form
Tap Chamfer 2.0P-3.0P
Dimension Standard DIN/DIN
Length Type Standard
Tool Material Steel
Thread Limit 6H
Tap Type Mod Bottom
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Automotive Yes
Multi Spindle Yes
Aerospace Yes
Job Shop Yes
Agricultural YES
Medical Yes
Energy Yes
