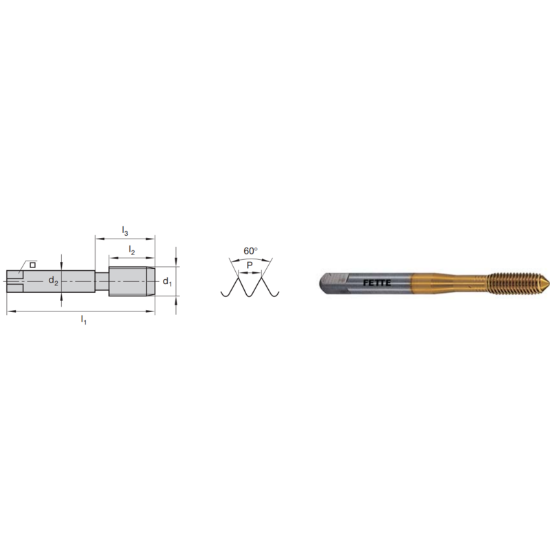

Picture of LMT FETTE 1401171 M3-0.50MM Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1401171 M3-0.50MM Roll Form Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1401171
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Roll Form Tapping, Tapping, Blind Hole Tapping, Mod Bottom Tapping
Performance Rating High Performance
Coating TiCN +
Package Size 1
Dimensional Specifications
Cut Rating <40HRC Steel, Aluminum, High Temp, Stainless Steel
Length Type Standard
Tap Style Roll Form
Tool Material Steel
Machine Side Connection Type Tap Collet
Tap Square 0.1060
Tap Type Mod Bottom
Dimension Standard DIN/DIN
Thread Pitch 0.50MM
Shank/Pilot Dia 0.1380 3.51MM
Thread Size M3
Thread Type Metric
Overall Len 2.2050 56.01MM
Thread Limit 6H
Drill Range 0.0976 2.48MM - 0.1028 2.61MM
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Multi Spindle Yes
Automotive Yes
Aerospace Yes
Job Shop Yes
Medical Yes
Agricultural YES
Energy Yes
