  • LMT FETTE 1401168 1-3/8-12.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

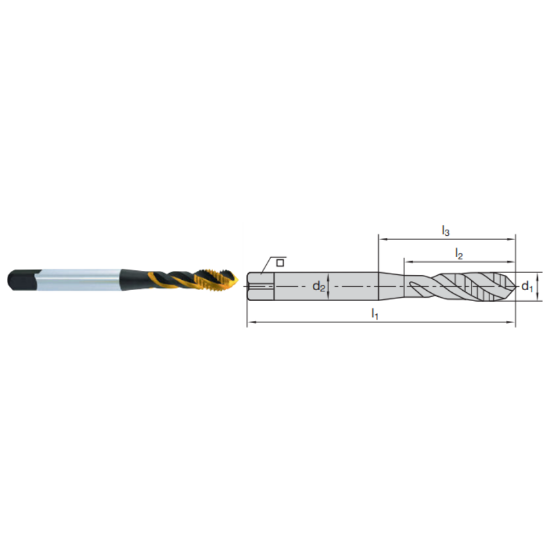

Picture of LMT FETTE 1401168 1-3/8-12.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1401168 1-3/8-12.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1401168
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Application Mod Bottom Tapping, Cut Tapping, Tapping
Shipping State Illinois
Coating TiCN +
Package Size 1
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Shank/Pilot Dia 1.1080 28.14MM
Flutes/Inserts 6
Tool Material Steel
Thread Size 1-3/8"
Thread Pitch 12.00TPI
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Limit 2B/3B
Dimension Standard DINSI
Overall Len 7.8740 200.00MM
Tap Chamfer 2.0P-3.0P
Drill Range 1.2846 32.63MM - 1.3098 33.27MM
Flute Direction R - Right
Tap Square 0.8310
Length Type Standard
Thread Type NF/UNF/UNEF
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
Multi Spindle Yes
