  • LMT FETTE 1401161 9/16-18.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

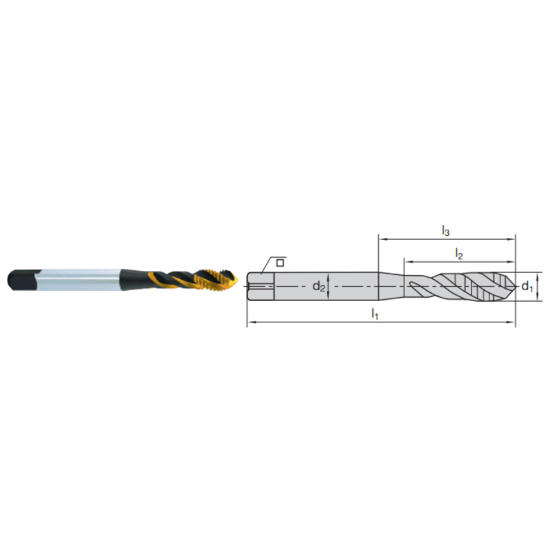

Picture of LMT FETTE 1401161 9/16-18.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1401161 9/16-18.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1401161
Delivery date: 3-5 days
$81.67

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiCN +
Package Size 1
Shipping State Illinois
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Thread Pitch 18.00TPI
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Size 9/16"
Tool Material Steel
Shank/Pilot Dia 0.4290 10.90MM
Overall Len 3.9370 100.00MM
Thread Type NF/UNF/UNEF
Drill Range 0.5047 12.82MM - 0.5189 13.18MM
Thread Limit 2B/3B
Flute Direction R - Right
Dimension Standard DINSI
Flutes/Inserts 4
Length Type Standard
Tap Square 0.3220
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Medical Yes
Aerospace Yes
Mold Yes
Automotive Yes
Job Shop Yes
Multi Spindle Yes
