  • LMT FETTE 1401158 3/8-24.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

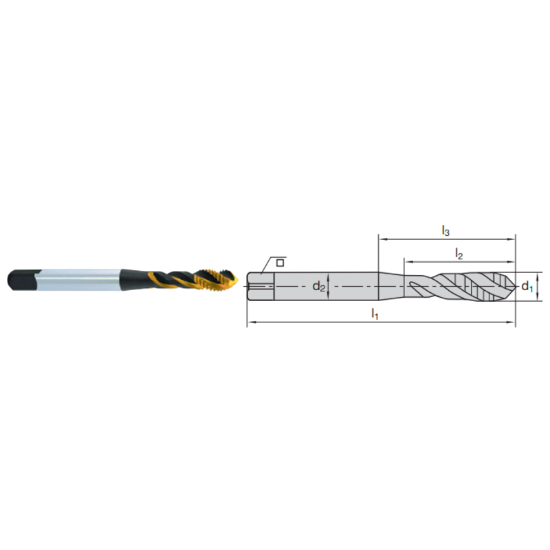

Picture of LMT FETTE 1401158 3/8-24.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1401158 3/8-24.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1401158
Delivery date: 3-5 days
$57.22

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Coating TiCN +
Package Size 1
Dimensional Specifications
Thread Pitch 24.00TPI
Flutes/Inserts 3
Thread Type NF/UNF/UNEF
Drill Range 0.3315 8.42MM - 0.3421 8.69MM
Flute Direction R - Right
Overall Len 3.9370 100.00MM
Length Type Standard
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Size 3/8"
Thread Limit 2B/3B
Dimension Standard DINSI
Shank/Pilot Dia 0.3810 9.68MM
Tap Square 0.2860
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Automotive Yes
Multi Spindle Yes
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
