  • LMT FETTE 1401157 5/16-24.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

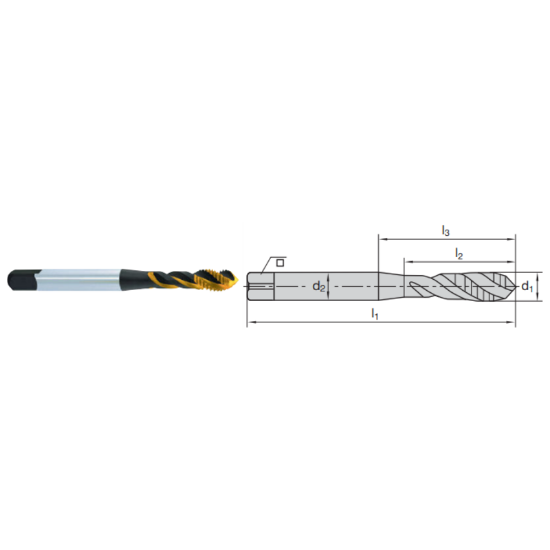

Picture of LMT FETTE 1401157 5/16-24.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1401157 5/16-24.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1401157
Delivery date: 3-5 days
$50.16

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Application Mod Bottom Tapping, Cut Tapping, Tapping
Made In USA No
Coating TiCN +
Package Size 1
Performance Rating High Performance
Shipping State Illinois
Dimensional Specifications
Tap Square 0.2380
Thread Limit 2B/3B
Flute Direction R - Right
Dimension Standard DINSI
Length Type Standard
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Pitch 24.00TPI
Thread Type NF/UNF/UNEF
Flutes/Inserts 3
Drill Range 0.2689 6.83MM - 0.2799 7.11MM
Thread Size 5/16"
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Overall Len 3.5430 89.99MM
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Multi Spindle Yes
Agricultural YES
Energy Yes
Aerospace Yes
Mold Yes
Automotive Yes
Job Shop Yes
Medical Yes
