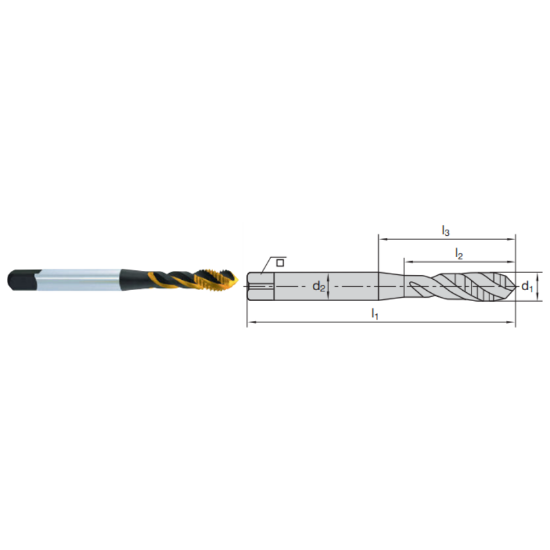

Picture of LMT FETTE 1401155 No.12-28.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1401155 No.12-28.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1401155
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Coating TiCN +
Package Size 1
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Dimensional Specifications
Tool Material Steel
Tap Square 0.1650
Flute Direction R - Right
Length Type Standard
Thread Size No.12
Thread Limit 2B/3B
Dimension Standard DINSI
Shank/Pilot Dia 0.2200 5.59MM
Tap Chamfer 2.0P-3.0P
Thread Type NF/UNF/UNEF
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Overall Len 3.1560 80.16MM
Drill Range 0.1787 4.54MM - 0.1882 4.78MM
Thread Pitch 28.00TPI
Flutes/Inserts 3
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Multi Spindle Yes
Agricultural YES
Medical Yes
Energy Yes
