  • LMT FETTE 1401146 1/2-20.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

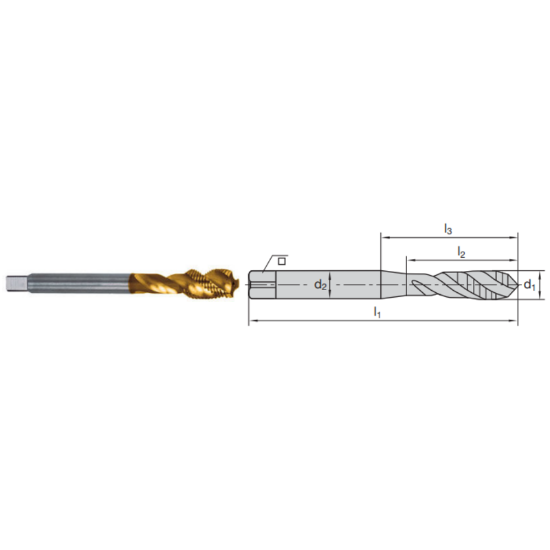

Picture of LMT FETTE 1401146 1/2-20.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

LMT FETTE 1401146 1/2-20.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1401146
Delivery date: 3-5 days
$66.68

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiCN +
Package Size 1
Application Bottom Tapping, Tapping, Cut Tapping
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Drill Range 0.4476 11.37MM - 0.4606 11.70MM
Tap Square 0.2750
Tap Style Cut Spiral Flute
Thread Pitch 20.00TPI
Thread Limit 2B/3B
Dimension Standard DINSI
Flutes/Inserts 4
Thread Type NF/UNF/UNEF
Tap Chamfer 1.5P-2.5P
Flute Direction R - Right
Length Type Standard
Tap Type Bottoming
Thread Size 1/2"
Tool Material Steel
Overall Len 4.3310 110.01MM
Shank/Pilot Dia 0.3670 9.32MM
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Medical Yes
Energy Yes
Automotive Yes
Multi Spindle Yes
Aerospace Yes
Job Shop Yes
Mold Yes
