  • LMT FETTE 1401145 7/16-20.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

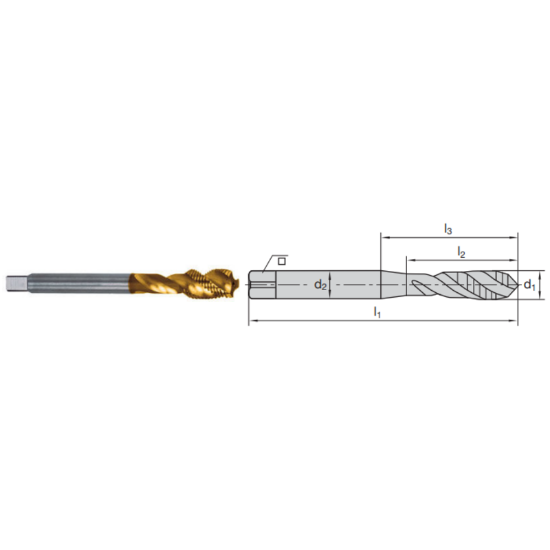

Picture of LMT FETTE 1401145 7/16-20.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

LMT FETTE 1401145 7/16-20.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1401145
Delivery date: 3-5 days
$50.71

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Coating TiCN +
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Thread Pitch 20.00TPI
Thread Limit 2B/3B
Flute Direction R - Right
Dimension Standard DINSI
Length Type Standard
Flutes/Inserts 3
Drill Range 0.3854 9.79MM - 0.3984 10.12MM
Tap Square 0.2420
Tap Chamfer 1.5P-2.5P
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Thread Size 7/16"
Shank/Pilot Dia 0.3230 8.20MM - P
Tap Style Cut Spiral Flute
Thread Type NF/UNF/UNEF
Tool Material Steel
Overall Len 3.9370 100.00MM
Tap Type Bottoming
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Multi Spindle Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Medical Yes
Agricultural YES
Energy Yes
Automotive Yes
