  • LMT FETTE 1401143 5/16-24.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

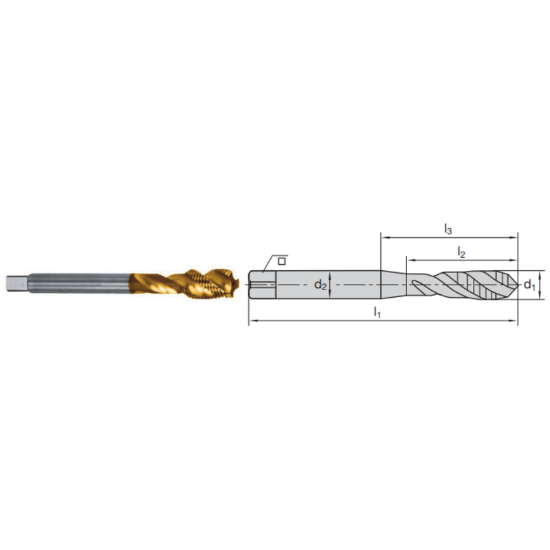

Picture of LMT FETTE 1401143 5/16-24.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

LMT FETTE 1401143 5/16-24.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1401143
Delivery date: 3-5 days
$40.66

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Shipping State Illinois
Coating TiCN +
Package Size 1
Made In USA No
Dimensional Specifications
Thread Pitch 24.00TPI
Thread Type NF/UNF/UNEF
Drill Range 0.2689 6.83MM - 0.2799 7.11MM
Tap Chamfer 1.5P-2.5P
Flutes/Inserts 3
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Overall Len 3.5430 89.99MM
Thread Limit 2B/3B
Dimension Standard DINSI
Thread Size 5/16"
Flute Direction R - Right
Length Type Standard
Tap Type Bottoming
Tap Square 0.2380
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Multi Spindle Yes
