  • LMT FETTE 1401141 No.12-28.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

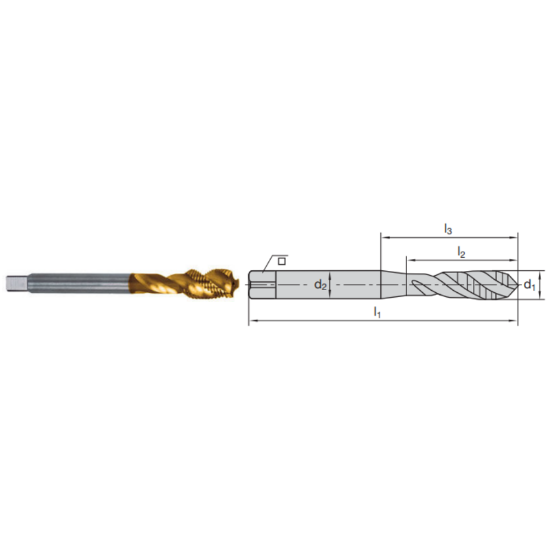

Picture of LMT FETTE 1401141 No.12-28.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

LMT FETTE 1401141 No.12-28.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1401141
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Coating TiCN +
Package Size 1
Dimensional Specifications
Length Type Standard
Tap Type Bottoming
Thread Type NF/UNF/UNEF
Drill Range 0.1787 4.54MM - 0.1882 4.78MM
Flutes/Inserts 3
Tap Chamfer 1.5P-2.5P
Tap Style Cut Spiral Flute
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Thread Size No.12
Thread Limit 2B/3B
Flute Direction R - Right
Dimension Standard DINSI
Shank/Pilot Dia 0.2200 5.59MM
Overall Len 3.1560 80.16MM
Thread Pitch 28.00TPI
Tool Material Steel
Tap Square 0.1650
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Agricultural YES
Energy Yes
Medical Yes
Multi Spindle Yes
Aerospace Yes
Job Shop Yes
Mold Yes
