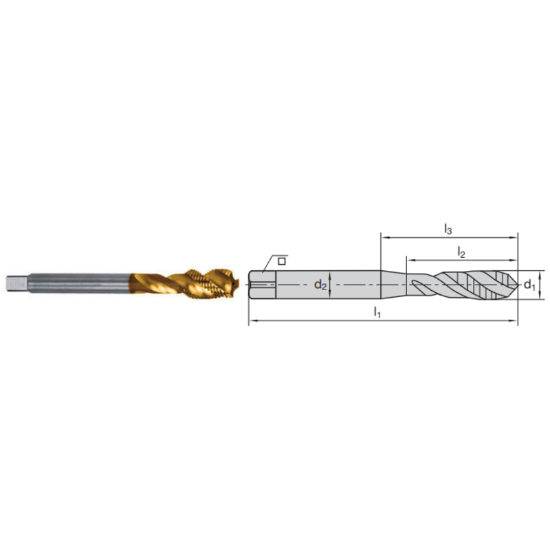

Picture of LMT FETTE 1401140 No.10-32.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

LMT FETTE 1401140 No.10-32.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1401140
Delivery date: 3-5 days
$39.19

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Coating TiCN +
Package Size 1
Dimensional Specifications
Thread Type NF/UNF/UNEF
Tap Chamfer 1.5P-2.5P
Thread Limit 2B/3B
Flute Direction R - Right
Dimension Standard DINSI
Length Type Standard
Tap Type Bottoming
Tool Material Steel
Overall Len 2.7560 70.00MM
Drill Range 0.1575 4.00MM - 0.1654 4.20MM
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Thread Pitch 32.00TPI
Tap Square 0.1520
Thread Size No.10
Shank/Pilot Dia 0.1940 4.93MM
Tap Style Cut Spiral Flute
Flutes/Inserts 3
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Multi Spindle Yes
Automotive Yes
Job Shop Yes
Medical Yes
Agricultural YES
Energy Yes
Aerospace Yes
Mold Yes
