  • LMT FETTE 1401133 1-1/4-12.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

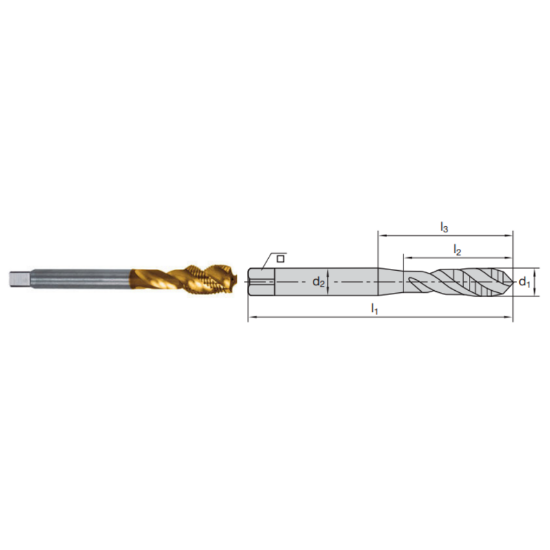

Picture of LMT FETTE 1401133 1-1/4-12.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1401133 1-1/4-12.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1401133
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Application Mod Bottom Tapping, Cut Tapping, Tapping
Made In USA No
Performance Rating High Performance
Shipping State Illinois
Coating TiCN +
Package Size 1
Dimensional Specifications
Thread Pitch 12.00TPI
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Size 1-1/4"
Flute Direction R - Right
Dimension Standard DINSI
Length Type Standard
Thread Type NF/UNF/UNEF
Shank/Pilot Dia 1.0210 25.93MM
Tap Square 0.7660
Tool Material Steel
Flutes/Inserts 5
Drill Range 1.1598 29.46MM - 1.1850 30.10MM
Thread Limit 2B/3B
Overall Len 5.9060 150.01MM
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Medical Yes
Energy Yes
Multi Spindle Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
