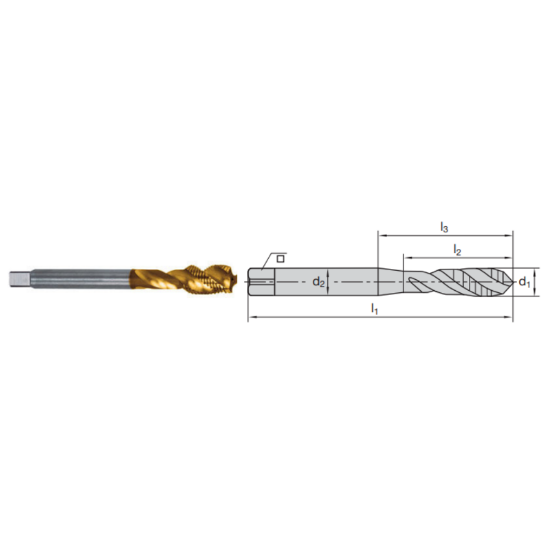

Picture of LMT FETTE 1401129 1-12.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1401129 1-12.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1401129
Delivery date: 3-5 days
$177.95

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Mod Bottom Tapping, Tapping
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Coating TiCN +
Package Size 1
Dimensional Specifications
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Shank/Pilot Dia 0.8000 20.32MM
Flute Direction R - Right
Length Type Standard
Thread Size 1"
Thread Limit 2B/3B
Dimension Standard DINSI
Tool Material Steel
Flutes/Inserts 5
Tap Square 0.6000
Thread Pitch 12.00TPI
Overall Len 5.5120 140.00MM
Drill Range 0.9134 23.20MM - 0.9350 23.75MM
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Type NF/UNF/UNEF
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Automotive Yes
Multi Spindle Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
