  • LMT FETTE 1401127 7/8-14.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

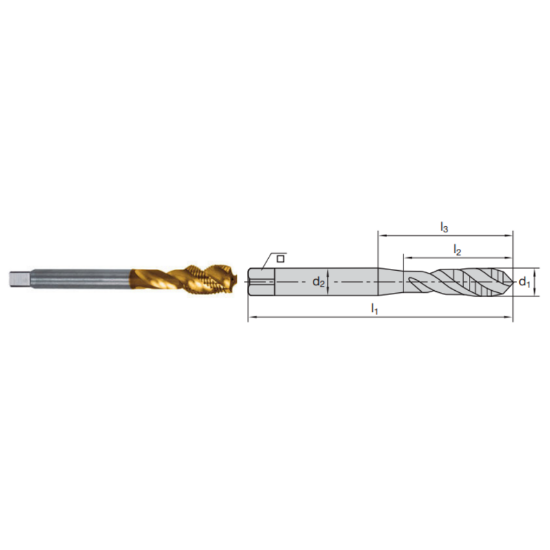

Picture of LMT FETTE 1401127 7/8-14.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1401127 7/8-14.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1401127
Delivery date: 3-5 days
$134.58

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Application Mod Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Coating TiCN +
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Thread Pitch 14.00TPI
Shank/Pilot Dia 0.6970 17.70MM
Thread Type NF/UNF/UNEF
Drill Range 0.8008 20.34MM - 0.8193 20.81MM
Tap Square 0.5230
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Limit 2B/3B
Flute Direction R - Right
Dimension Standard DINSI
Flutes/Inserts 4
Length Type Standard
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Tool Material Steel
Overall Len 4.9210 124.99MM
Thread Size 7/8"
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Mold Yes
Agricultural YES
Energy Yes
Multi Spindle Yes
Medical Yes
Automotive Yes
Job Shop Yes
