  • LMT FETTE 1401111 1/4-28.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

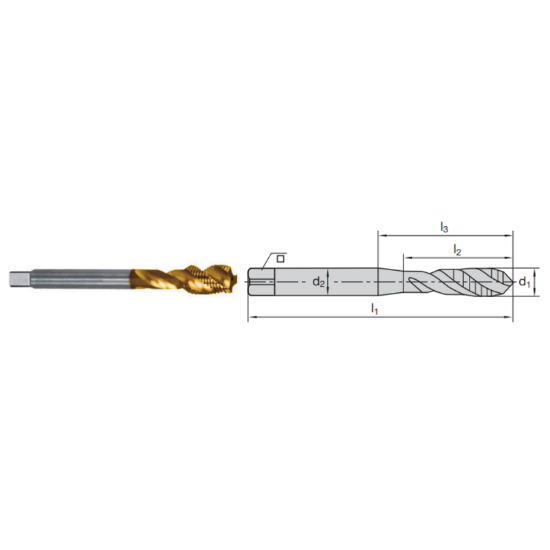

Picture of LMT FETTE 1401111 1/4-28.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1401111 1/4-28.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1401111
Delivery date: 3-5 days
$39.27

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiCN +
Package Size 1
Application Mod Bottom Tapping, Cut Tapping, Tapping
Shipping State Illinois
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Tap Square 0.1910
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Size 1/4"
Tool Material Steel
Thread Pitch 28.00TPI
Drill Range 0.2244 5.70MM - 0.2220 5.64MM
Thread Limit 2B/3B
Flute Direction R - Right
Dimension Standard DINSI
Overall Len 3.1490 79.98MM
Length Type Standard
Thread Type NF/UNF/UNEF
Flutes/Inserts 3
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2550 6.48MM
Tap Type Mod Bottom
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Automotive Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Multi Spindle Yes
Medical Yes
