  • LMT FETTE 1401064 1-3/4-5.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

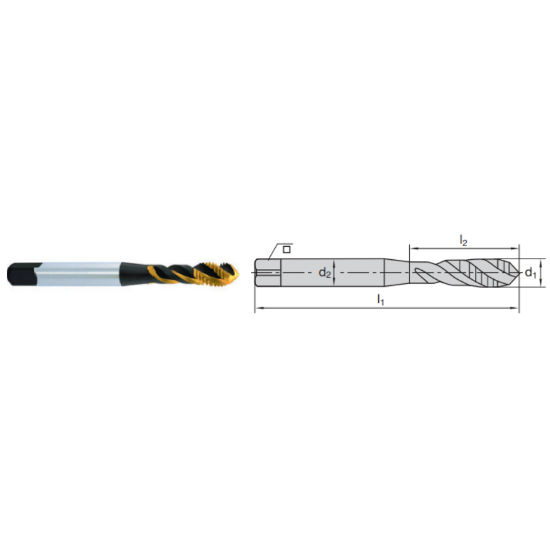

Picture of LMT FETTE 1401064 1-3/4-5.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1401064 1-3/4-5.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1401064
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Application Mod Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Coating TiCN +
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Thread Size 1-3/4"
Tool Material Steel
Flutes/Inserts 5
Drill Range 1.5339 38.96MM - 1.5941 40.49MM
Thread Pitch 5.00TPI
Shank/Pilot Dia 1.4300 36.32MM
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Type NC/UNC
Thread Limit 2B/3B
Dimension Standard DINSI
Tap Square 1.0720
Tap Chamfer 2.0P-3.0P
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Flute Direction R - Right
Length Type Standard
Overall Len 8.6610 219.99MM
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
Automotive Yes
Multi Spindle Yes
