  • LMT FETTE 1401058 7/8-9.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

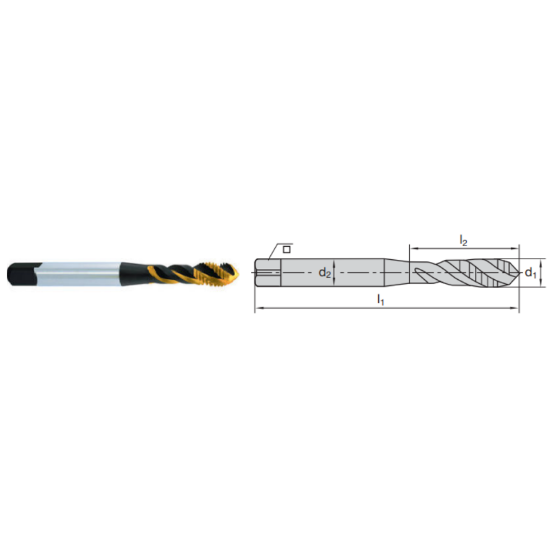

Picture of LMT FETTE 1401058 7/8-9.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1401058 7/8-9.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1401058
Delivery date: 3-5 days
$164.94

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Made In USA No
Coating TiCN +
Package Size 1
Shipping State Illinois
Dimensional Specifications
Thread Pitch 9.00TPI
Tap Square 0.5230
Thread Size 7/8"
Thread Type NC/UNC
Flute Direction R - Right
Dimension Standard DINSI
Flutes/Inserts 4
Drill Range 0.7594 19.29MM - 0.7882 20.02MM
Length Type Standard
Shank/Pilot Dia 0.6970 17.70MM
Thread Limit 2B/3B
Overall Len 5.5120 140.00MM
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Aerospace Yes
Mold Yes
Multi Spindle Yes
Agricultural YES
Energy Yes
Medical Yes
Automotive Yes
Job Shop Yes
