  • LMT FETTE 1401050 1/4-20.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

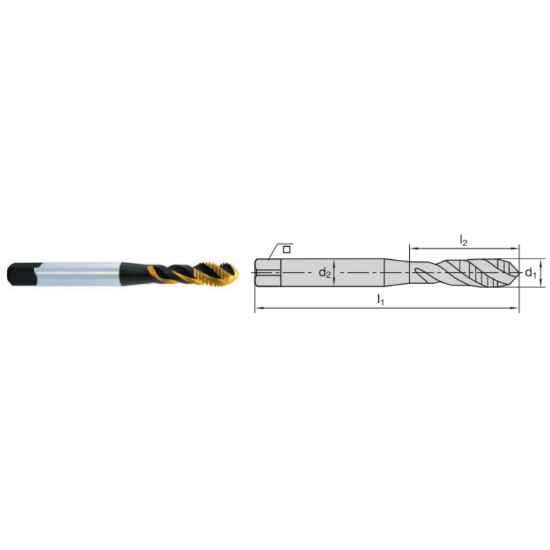

Picture of LMT FETTE 1401050 1/4-20.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1401050 1/4-20.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1401050
Delivery date: 3-5 days
$55.07

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Application Mod Bottom Tapping, Cut Tapping, Tapping
Coating TiCN +
Package Size 1
Shipping State Illinois
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Thread Size 1/4"
Shank/Pilot Dia 0.2550 6.48MM
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Tap Square 0.1910
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Tool Material Steel
Thread Pitch 20.00TPI
Thread Type NC/UNC
Thread Limit 2B/3B
Flute Direction R - Right
Dimension Standard DINSI
Overall Len 3.1490 79.98MM
Length Type Standard
Flutes/Inserts 3
Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Medical Yes
Aerospace Yes
Mold Yes
Agricultural YES
Energy Yes
Automotive Yes
Job Shop Yes
Multi Spindle Yes
