  • LMT FETTE 1401049 No.12-24.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

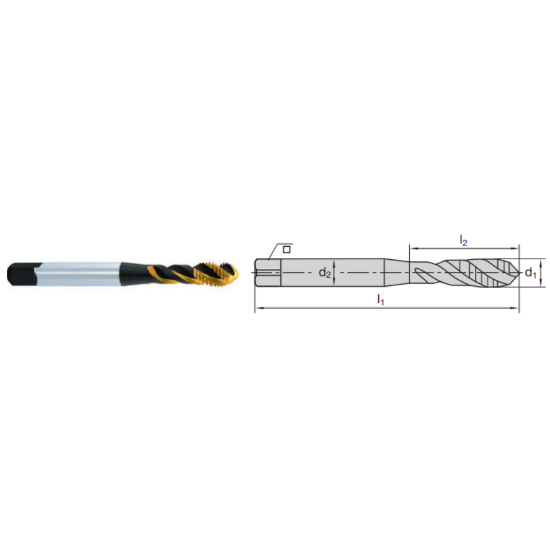

Picture of LMT FETTE 1401049 No.12-24.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1401049 No.12-24.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1401049
Delivery date: 3-5 days
$48.06

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Made In USA No
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Coating TiCN +
Package Size 1
Dimensional Specifications
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Tool Material Steel
Tap Square 0.1650
Thread Size No.12
Thread Type NC/UNC
Flute Direction R - Right
Dimension Standard DINSI
Length Type Standard
Overall Len 3.1560 80.16MM
Thread Pitch 24.00TPI
Flutes/Inserts 3
Thread Limit 2B/3B
Shank/Pilot Dia 0.2200 5.59MM
Drill Range 0.1724 4.38MM - 0.1835 4.66MM
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Multi Spindle Yes
Agricultural YES
