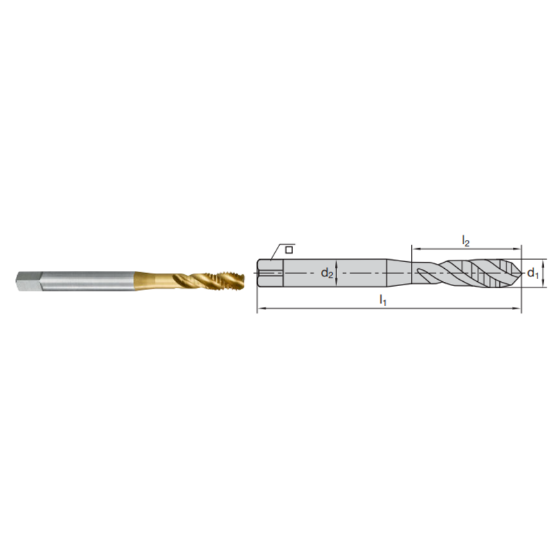

LMT FETTE 1401036 1/4-20.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1401036
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Coating TiCN +
Package Size 1
Dimensional Specifications
Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Tap Chamfer 1.5P-2.5P
Flute Direction R - Right
Length Type Standard
Tap Type Bottoming
Tool Material Steel
Shank/Pilot Dia 0.2550 6.48MM
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Square 0.1910
Tap Style Cut Spiral Flute
Thread Size 1/4"
Thread Pitch 20.00TPI
Thread Type NC/UNC
Thread Limit 2B/3B
Dimension Standard DINSI
Overall Len 3.1490 79.98MM
Flutes/Inserts 3
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Multi Spindle Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
