  • LMT FETTE 1401035 No.12-24.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

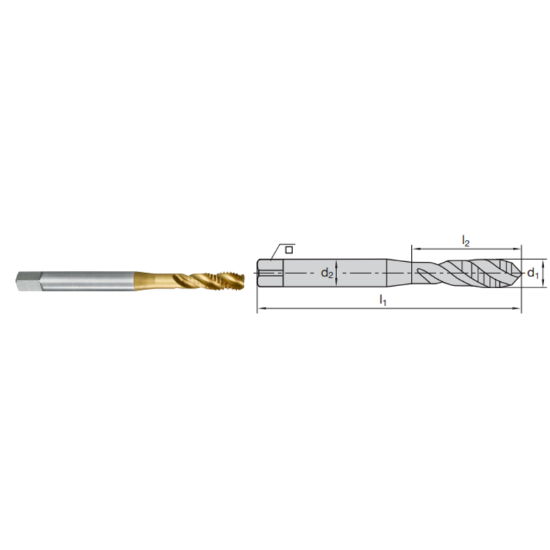

Picture of LMT FETTE 1401035 No.12-24.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

LMT FETTE 1401035 No.12-24.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1401035
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Application Bottom Tapping, Tapping, Cut Tapping
Performance Rating High Performance
Coating TiCN +
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Overall Len 3.1560 80.16MM
Tap Chamfer 1.5P-2.5P
Thread Size No.12
Thread Type NC/UNC
Thread Limit 2B/3B
Dimension Standard DINSI
Shank/Pilot Dia 0.2200 5.59MM
Thread Pitch 24.00TPI
Flutes/Inserts 3
Flute Direction R - Right
Length Type Standard
Tap Type Bottoming
Tool Material Steel
Tap Square 0.1650
Drill Range 0.1724 4.38MM - 0.1835 4.66MM
Tap Style Cut Spiral Flute
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Automotive Yes
Multi Spindle Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
