  • LMT FETTE 1401034 No.10-24.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

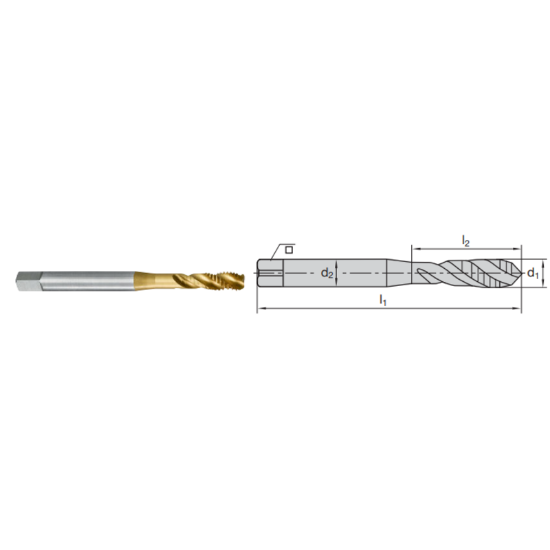

Picture of LMT FETTE 1401034 No.10-24.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

LMT FETTE 1401034 No.10-24.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1401034
Delivery date: 3-5 days
$39.10

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Coating TiCN +
Package Size 1
Dimensional Specifications
Thread Type NC/UNC
Thread Limit 2B/3B
Flute Direction R - Right
Dimension Standard DINSI
Drill Range 0.1465 3.72MM - 0.1575 4.00MM
Length Type Standard
Tap Type Bottoming
Tool Material Steel
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Thread Pitch 24.00TPI
Flutes/Inserts 3
Tap Chamfer 1.5P-2.5P
Overall Len 2.7560 70.00MM
Tap Square 0.1520
Thread Size No.10
Shank/Pilot Dia 0.1940 4.93MM
Tap Style Cut Spiral Flute
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Multi Spindle Yes
Automotive Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Medical Yes
Agricultural YES
Energy Yes
