  • LMT FETTE 1401033 No.8-32.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

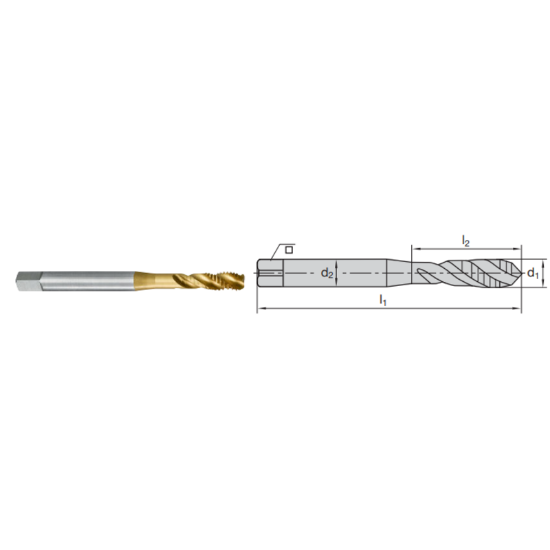

Picture of LMT FETTE 1401033 No.8-32.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

LMT FETTE 1401033 No.8-32.00TPI Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1401033
Delivery date: 3-5 days
$39.15

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Coating TiCN +
Package Size 1
Shipping State Illinois
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Dimensional Specifications
Flutes/Inserts 3
Thread Size No.8
Overall Len 2.4800 62.99MM
Thread Pitch 32.00TPI
Thread Type NC/UNC
Thread Limit 2B/3B
Flute Direction R - Right
Dimension Standard DINSI
Shank/Pilot Dia 0.1680 4.27MM
Tap Square 0.1310
Length Type Standard
Tap Type Bottoming
Tap Style Cut Spiral Flute
Tool Material Steel
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Drill Range 0.1315 3.34MM - 0.1394 3.54MM
Tap Chamfer 1.5P-2.5P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Aerospace Yes
Mold Yes
Multi Spindle Yes
Agricultural YES
Energy Yes
Automotive Yes
Job Shop Yes
Medical Yes
