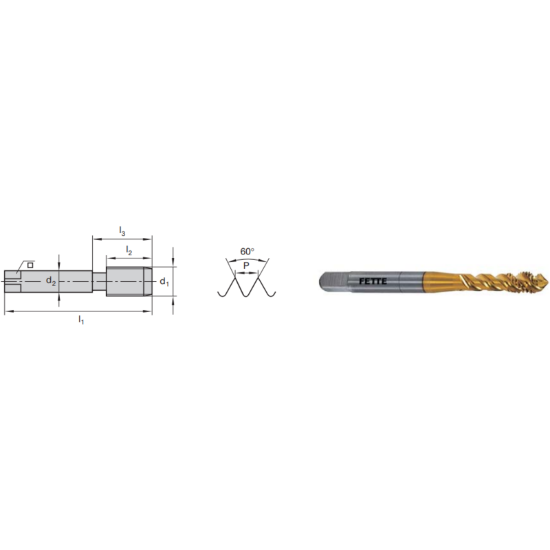

Picture of LMT FETTE 1401027 1-1/2-6.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1401027 1-1/2-6.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1401027
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Package Size 1
Coating TiCN +
Dimensional Specifications
Flute Direction R - Right
Shank/Pilot Dia 1.2330 31.32MM
Drill Range 1.3268 33.70MM - 1.3701 34.80MM
Length Type Standard
Tool Material Steel
Tap Square 0.9250
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Size 1-1/2"
Thread Pitch 6.00TPI
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Type NC/UNC
Thread Limit 2B/3B
Dimension Standard DINSI
Overall Len 7.8740 200.00MM
Flutes/Inserts 4
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
Multi Spindle Yes
