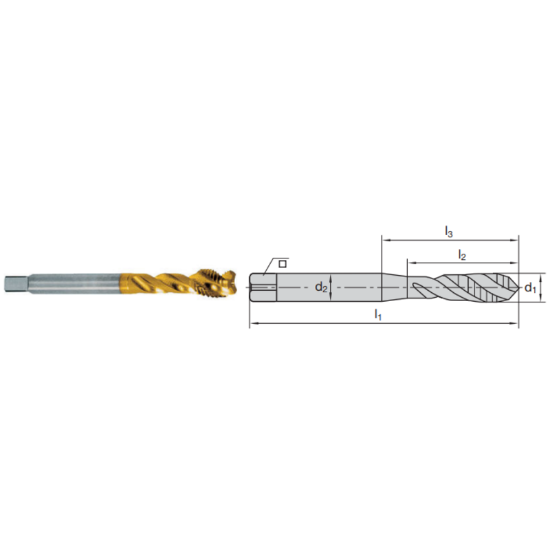

Picture of LMT FETTE 1400947 M16-2.00MM Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

LMT FETTE 1400947 M16-2.00MM Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1400947
Delivery date: 3-5 days
$75.76

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiCN +
Package Size 1
Application Cut Tapping, Bottom Tapping, Tapping
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Thread Pitch 2.00MM
Thread Type Metric
Thread Limit 2B/3B
Tap Style Cut Spiral Flute
Dimension Standard DIN/DIN
Flutes/Inserts 3
Tap Square 0.3540
Tool Material Steel
Overall Len 4.3310 110.01MM
Shank/Pilot Dia 0.4720 11.99MM
Tap Chamfer 1.5P-2.5P
Thread Size M16
Flute Direction R - Right
Drill Range 0.5480 13.92MM - 0.5685 14.44MM
Length Type Standard
Tap Type Bottoming
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Automotive Yes
Multi Spindle Yes
