  • LMT FETTE 1400946 M14-2.00MM Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

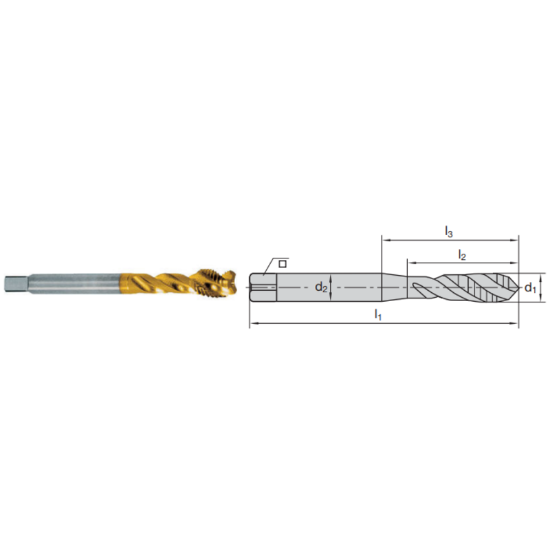

Picture of LMT FETTE 1400946 M14-2.00MM Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

LMT FETTE 1400946 M14-2.00MM Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1400946
Delivery date: 3-5 days
$71.16

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiCN +
Package Size 1
Made In USA No
Shipping State Illinois
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Dimensional Specifications
Tap Style Cut Spiral Flute
Thread Type Metric
Shank/Pilot Dia 0.4330 11.00MM
Thread Pitch 2.00MM
Drill Range 0.4693 11.92MM - 0.4898 12.44MM
Thread Size M14
Tool Material Steel
Length Type Standard
Tap Type Bottoming
Overall Len 4.3310 110.01MM
Tap Square 0.3540
Thread Limit 2B/3B
Flute Direction R - Right
Dimension Standard DIN/DIN
Flutes/Inserts 3
Tap Chamfer 1.5P-2.5P
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Automotive Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Multi Spindle Yes
Medical Yes
