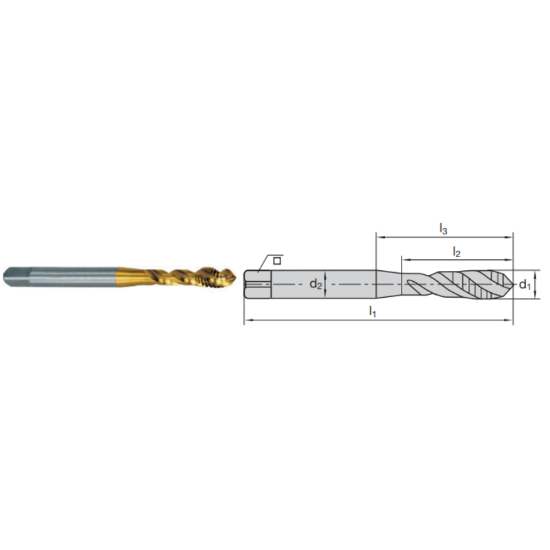

Picture of LMT FETTE 1400944 M10-1.50MM Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

LMT FETTE 1400944 M10-1.50MM Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1400944
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Shipping State Illinois
Made In USA No
Coating TiCN +
Package Size 1
Dimensional Specifications
Thread Size M10
Tap Chamfer 1.5P-2.5P
Thread Type Metric
Tap Square 0.3150
Thread Pitch 1.50MM
Tool Material Steel
Overall Len 3.9370 100.00MM
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Drill Range 0.3323 8.44MM - 0.3476 8.83MM
Tap Style Cut Spiral Flute
Flute Direction R - Right
Length Type Standard
Tap Type Bottoming
Thread Limit 2B/3B
Shank/Pilot Dia 0.3940 10.01MM
Dimension Standard DIN/DIN
Flutes/Inserts 3
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Medical Yes
Energy Yes
Multi Spindle Yes
Agricultural YES
