  • LMT FETTE 1400941 M5-0.80MM Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

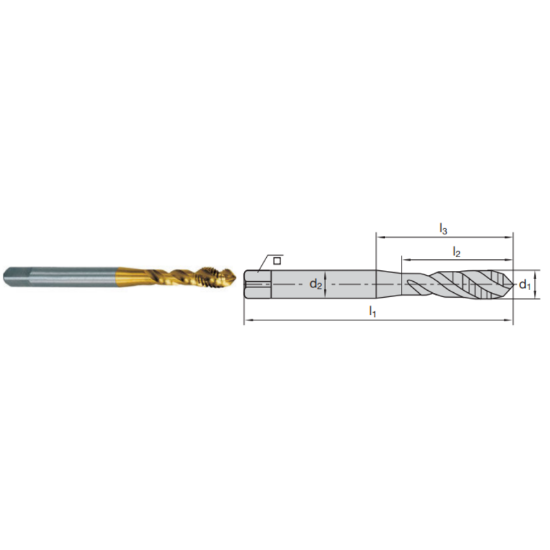

Picture of LMT FETTE 1400941 M5-0.80MM Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

LMT FETTE 1400941 M5-0.80MM Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1400941
Delivery date: 3-5 days
$42.06

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Made In USA No
Coating TiCN +
Package Size 1
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Dimensional Specifications
Tool Material Steel
Drill Range 0.1807 4.59MM - 0.1850 4.70MM
Tap Type Bottoming
Thread Limit 2B/3B
Flute Direction R - Right
Length Type Standard
Thread Type Metric
Shank/Pilot Dia 0.2360 5.99MM
Tap Style Cut Spiral Flute
Thread Pitch 0.80MM
Overall Len 2.7560 70.00MM
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Square 0.1930
Thread Size M5
Dimension Standard DIN/DIN
Flutes/Inserts 3
Tap Chamfer 1.5P-2.5P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Aerospace Yes
Mold Yes
Automotive Yes
Job Shop Yes
Multi Spindle Yes
Agricultural YES
Energy Yes
Medical Yes
