  • LMT FETTE 1400938 M20-1.50MM Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

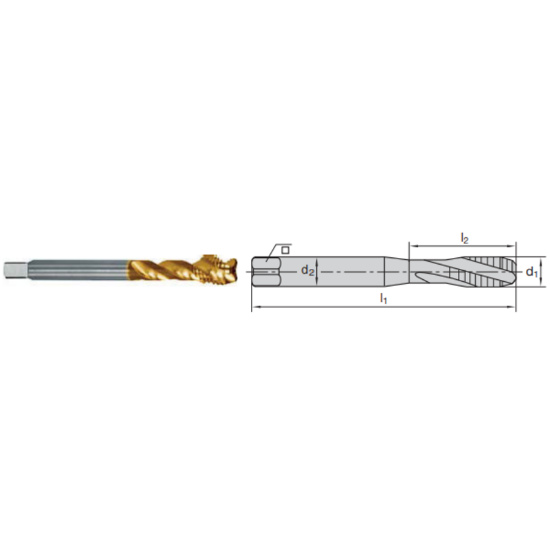

Picture of LMT FETTE 1400938 M20-1.50MM Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

LMT FETTE 1400938 M20-1.50MM Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1400938
Delivery date: 3-5 days
$128.63

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Package Size 1
Application Cut Tapping, Bottom Tapping, Tapping
Performance Rating High Performance
Coating TiCN +
Dimensional Specifications
Thread Pitch 1.50MM
Flute Direction R - Right
Length Type Standard
Tap Type Bottoming
Thread Size M20
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Drill Range 0.7299 18.54MM - 0.7413 18.83MM
Tap Square 0.4720
Tap Style Cut Spiral Flute
Dimension Standard DIN/DIN
Tap Chamfer 1.5P-2.5P
Thread Type Metric
Tool Material Steel
Overall Len 4.9210 124.99MM
Shank/Pilot Dia 0.6300 16.00MM
Thread Limit 2B/3B
Flutes/Inserts 4
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Multi Spindle Yes
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Only registered users can write reviews
