  • LMT FETTE 1400937 M18-1.50MM Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

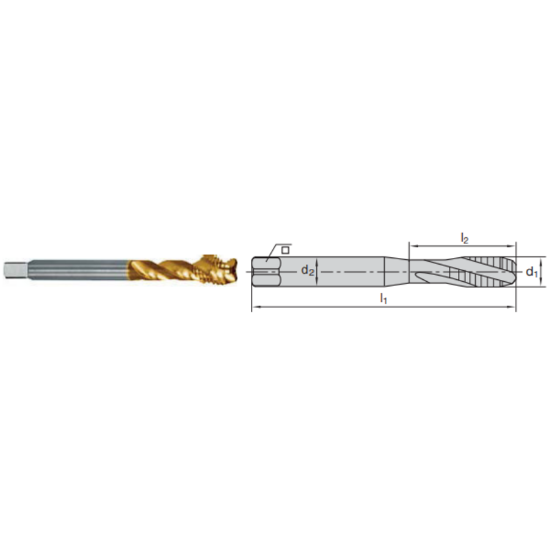

Picture of LMT FETTE 1400937 M18-1.50MM Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

LMT FETTE 1400937 M18-1.50MM Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1400937
Delivery date: 3-5 days
$91.81

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Shipping State Illinois
Made In USA No
Coating TiCN +
Package Size 1
Dimensional Specifications
Dimension Standard DIN/DIN
Tap Chamfer 1.5P-2.5P
Shank/Pilot Dia 0.5510 14.00MM
Overall Len 4.3310 110.01MM
Thread Pitch 1.50MM
Tool Material Steel
Tap Type Bottoming
Thread Size M18
Thread Limit 2B/3B
Flute Direction R - Right
Flutes/Inserts 4
Drill Range 0.6472 16.44MM - 0.6626 16.83MM
Length Type Standard
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Thread Type Metric
Tap Square 0.4330
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Aerospace Yes
Mold Yes
Automotive Yes
Job Shop Yes
Multi Spindle Yes
Medical Yes
Agricultural YES
Energy Yes
