  • LMT FETTE 1400936 M16-1.50MM Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

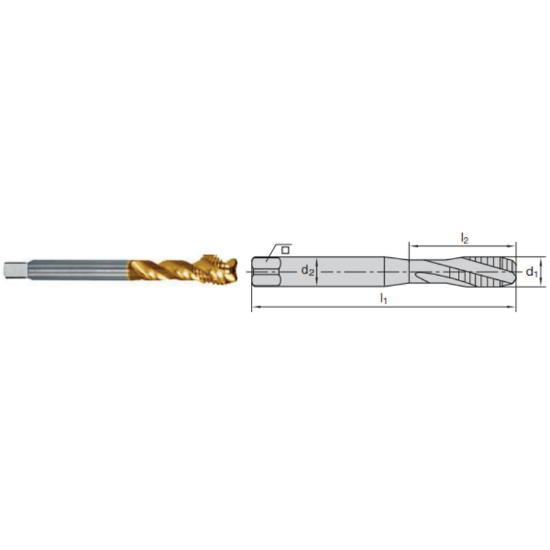

Picture of LMT FETTE 1400936 M16-1.50MM Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

LMT FETTE 1400936 M16-1.50MM Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1400936
Delivery date: 3-5 days
$75.76

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiCN +
Package Size 1
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Thread Limit 2B/3B
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.5P
Thread Size M16
Flute Direction R - Right
Flutes/Inserts 4
Drill Range 0.5724 14.54MM - 0.5839 14.83MM
Length Type Standard
Tap Type Bottoming
Dimension Standard DIN/DIN
Tap Square 0.3540
Thread Pitch 1.50MM
Tool Material Steel
Overall Len 3.9370 100.00MM
Thread Type Metric
Shank/Pilot Dia 0.4720 11.99MM
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Medical Yes
Energy Yes
Agricultural YES
Multi Spindle Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
