  • LMT FETTE 1400933 M12-1.25MM Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +
Picture of LMT FETTE 1400933 M12-1.25MM Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

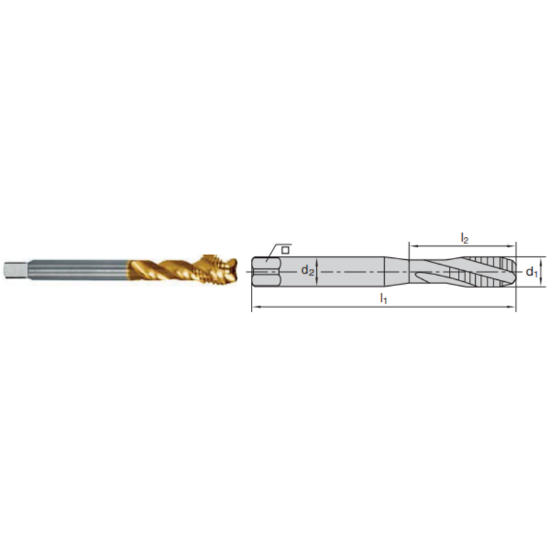

LMT FETTE 1400933 M12-1.25MM Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1400933
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiCN +
Package Size 1
Application Bottom Tapping, Tapping, Cut Tapping
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Thread Pitch 1.25MM
Tool Material Steel
Drill Range 0.4213 10.70MM - 0.4343 11.03MM
Tap Style Cut Spiral Flute
Thread Limit 2B/3B
Flutes/Inserts 4
Thread Type Metric
Tap Chamfer 1.5P-2.5P
Thread Size M12
Dimension Standard DIN/DIN
Shank/Pilot Dia 0.3540 8.99MM
Tap Square 0.2760
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Flute Direction R - Right
Overall Len 3.9370 100.00MM
Length Type Standard
Tap Type Bottoming
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
Automotive Yes
Multi Spindle Yes
