  • LMT FETTE 1400932 M12-1.00MM Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

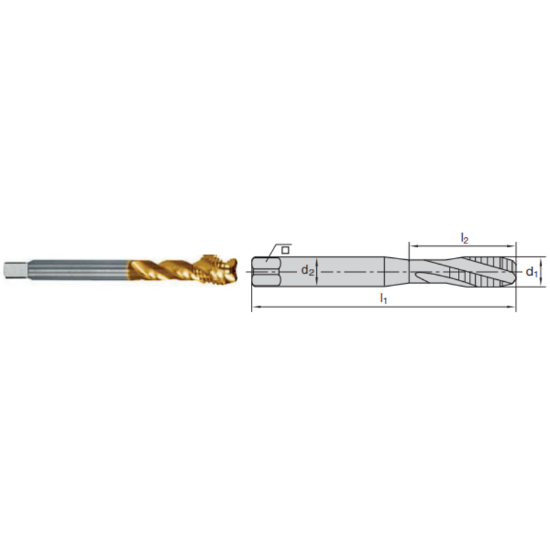

Picture of LMT FETTE 1400932 M12-1.00MM Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

LMT FETTE 1400932 M12-1.00MM Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1400932
Delivery date: 3-5 days
$53.46

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Shipping State Illinois
Coating TiCN +
Package Size 1
Made In USA No
Dimensional Specifications
Thread Type Metric
Thread Size M12
Dimension Standard DIN/DIN
Tap Chamfer 1.5P-2.5P
Shank/Pilot Dia 0.3540 8.99MM
Tap Square 0.2760
Thread Pitch 1.00MM
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Tool Material Steel
Overall Len 3.9370 100.00MM
Tap Type Bottoming
Drill Range 0.4315 10.96MM - 0.4417 11.22MM
Tap Style Cut Spiral Flute
Thread Limit 2B/3B
Flute Direction R - Right
Flutes/Inserts 4
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Mold Yes
Medical Yes
Automotive Yes
Job Shop Yes
Agricultural YES
Energy Yes
Multi Spindle Yes
