  • LMT FETTE 1400931 M11-1.00MM Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

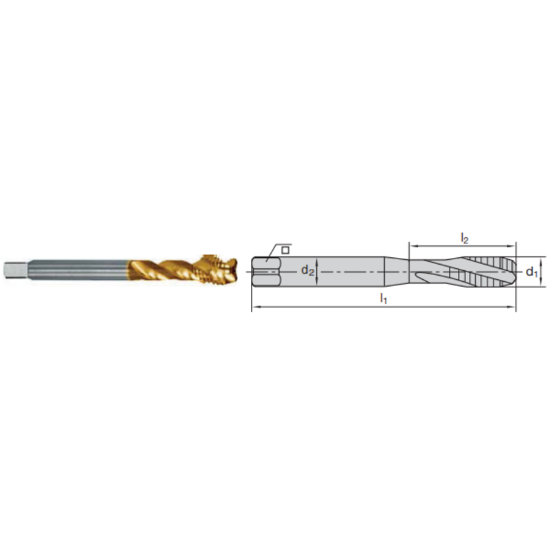

Picture of LMT FETTE 1400931 M11-1.00MM Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

LMT FETTE 1400931 M11-1.00MM Cut Spiral Flute Bottoming 1.5P-2.5P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1400931
Delivery date: 3-5 days
$49.15

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiCN +
Package Size 1
Made In USA No
Shipping State Illinois
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Dimensional Specifications
Thread Size M11
Thread Pitch 1.00MM
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Drill Range 0.3717 9.44MM - 0.3870 9.83MM
Thread Limit 2B/3B
Tap Style Cut Spiral Flute
Flute Direction R - Right
Flutes/Inserts 4
Length Type Standard
Tap Type Bottoming
Thread Type Metric
Shank/Pilot Dia 0.3150 8.00MM
Tool Material Steel
Overall Len 3.5430 89.99MM
Tap Square 0.2440
Tap Chamfer 1.5P-2.5P
Dimension Standard DIN/DIN
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Medical Yes
Energy Yes
Agricultural YES
Multi Spindle Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
