  • LMT FETTE 1400873 M16-1.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

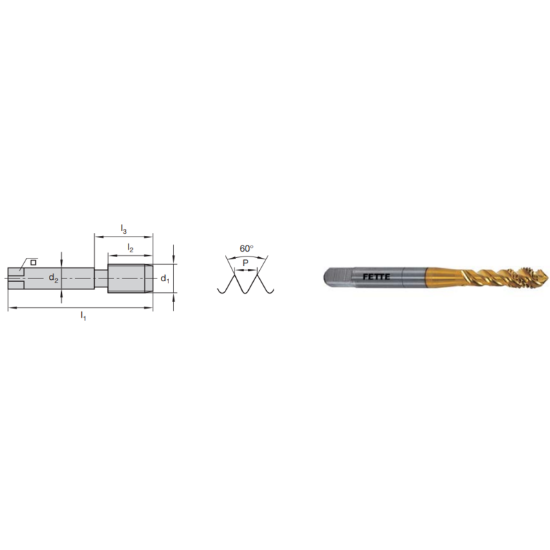

Picture of LMT FETTE 1400873 M16-1.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1400873 M16-1.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1400873
Delivery date: 3-5 days
$77.36

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Coating TiCN +
Package Size 1
Dimensional Specifications
Thread Size M16
Flute Direction R - Right
Flutes/Inserts 4
Drill Range 0.5724 14.54MM - 0.5839 14.83MM
Length Type Standard
Thread Pitch 1.50MM
Tool Material Steel
Overall Len 3.9370 100.00MM
Dimension Standard DIN/DIN
Tap Square 0.3540
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Type Metric
Shank/Pilot Dia 0.4720 11.99MM
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Multi Spindle Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Medical Yes
Agricultural YES
Energy Yes
